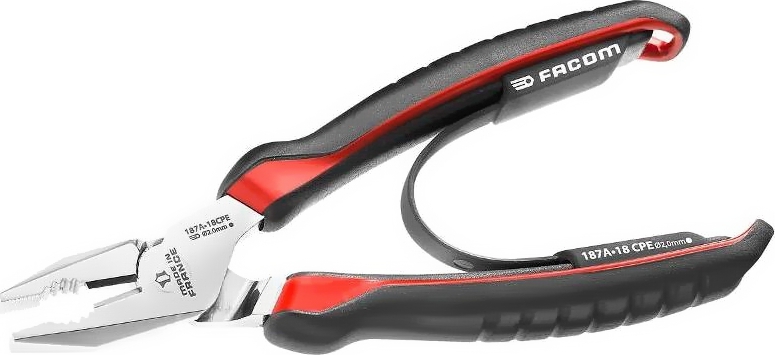

Castor Trading - FACOM 187A.18CPE COMBINATION PLIERS

×

COMBINATION PLIERS

Standards: NF ISO 5746, ISO 5746, DIN ISO 5746, ASME B107.500
Serrated flat and and oval pipe/cable gripping surfaces combined with a high perfomance cutting edges.

Cutting edges designed to cleanly cut all types of wire.
Soft wires and modern materials to a maximum piano wire specification of:

187A.18CPE: 2.0mm 210 kg/mm�

High Mechanical advantage due to off-set rivet and cutting edge geometry reducing effort.
High durability Carbon alloy steel, with induction hardened cutting edges.
Bi-Material ergonomic grips resistant to chemical agents featuring:
- Return spring
- Tether ready point (Tether point adds 10mm to nominal length)
Chrome finish for corrosion resistance.

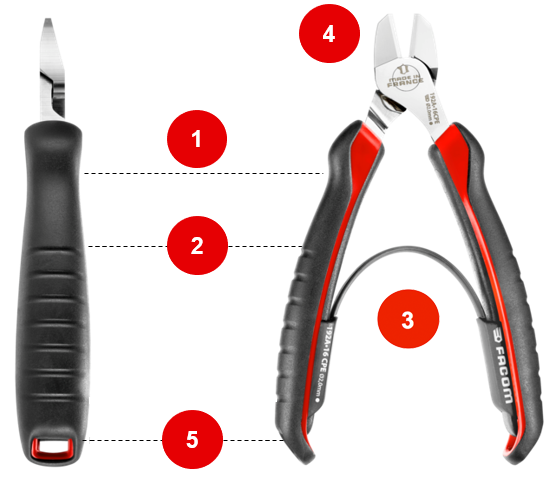

Sculptured upper section with fingerguard provides a natural fit aid grip
Wide lower section to increase contact with the plier aiding both grip and comfort
Return spring reduces total user effort and strain
Chrome plating provides maximum corrosion resistance
Hanging hole

Specifications:

	FACOM 187A.18CPE
B (mm)	23
C (mm)	36
E (mm)	10
L (mm)	185
Piano wire cutting capacity (mm)	2
Weight (g)	225

Products in the same category

FACOM 192A.16CPE

HIGH-PERFORMANCE DIAGONAL CUTTERS

Length: 165mm

FACOM 192A.20CPE

HIGH-PERFORMANCE DIAGONAL CUTTERS

Length: 200mm

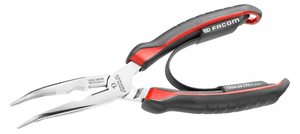

FACOM 195A.20CPE

LONG HALF-ROUND BENT NOSE PLIERS

Length: 205mm

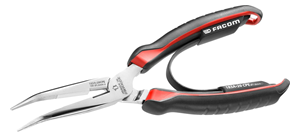

FACOM 183A.20CPE

HALF-ROUND LONG BENT SNIPE-NOSE PLIERS

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500

Extra Narrow, finely serrated tips 40� angled and side cutting edges.

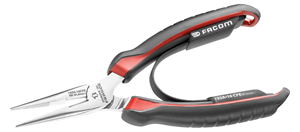

FACOM 193A.16CPE

SHORT HALF-ROUND NOSE PLIER

Narrow, finely serrated tips with side cutting edges.

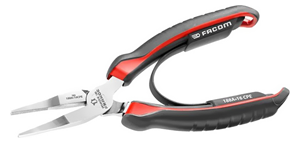

FACOM 188A.16CPE

FLAT NOSE PLIERS

Length: 160mm

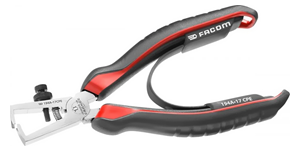

FACOM 194A.17CPE

WIRE STRIPPERS

Standards: ASME B107.500

For single and multi-core wires 0.5 to 6 mm�.

Adjustment screw with lock nut.
