Castor Trading - FACOM 440.34 METRIC COMBINATION WRENCHES

×

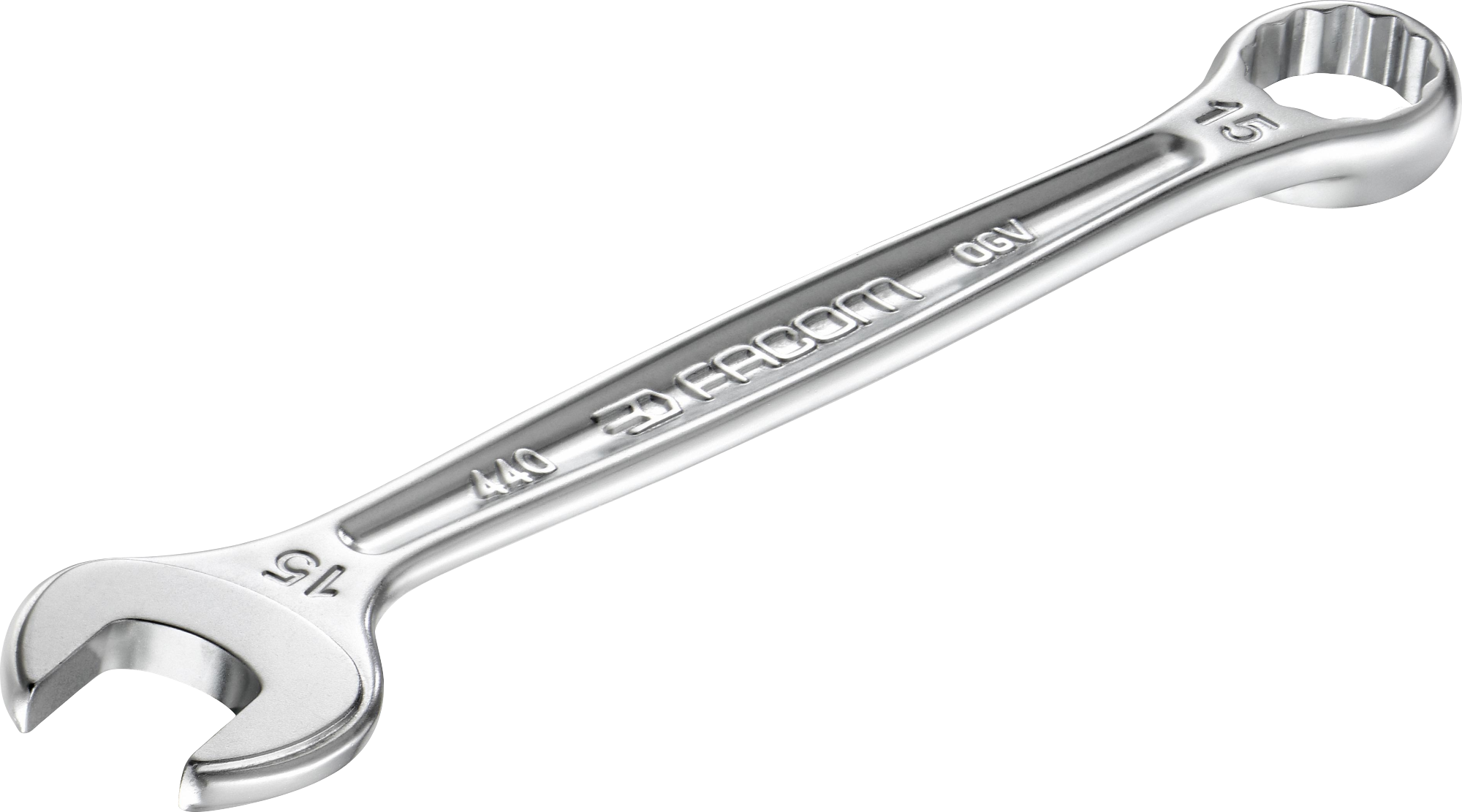

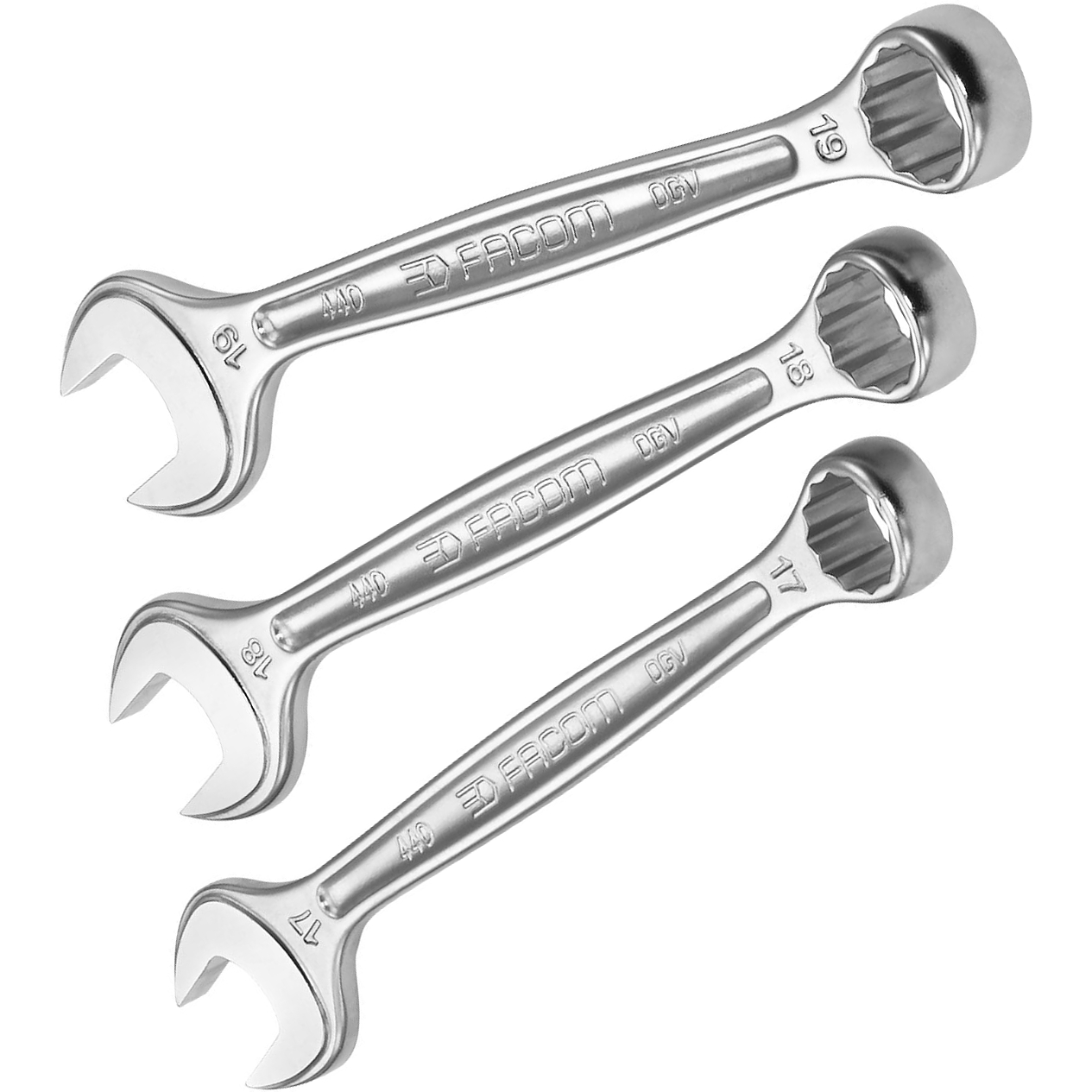

METRIC COMBINATION WRENCHES

Standards: NF ISO 691, NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, DIN 3113, ASME B107.100
Standard wrench for all common applications.
High mechanical performance combined with compact design complying with aeronautical standards.
Ring head:

Ring clearance designed for better access to serial-mounted or embedded screws.
OGV� profile 12-point ring for powerful tightening while protecting the nut. Suffix H=6 sided ring.
Ring head with 15� angle.

Open end head:

Open end with 15� angle.
Open end head-handle geometry optimized for increased accessibility.
Satin chrome finish.

Catalog page

Specifications:

	FACOM 440.34
Size (mm)	34
B (mm)	72
B1 (mm)	48.9
E (mm)	12.8
E2 (mm)	13
L (mm)	390
Weight (g)	745
