SAMOA 366726 HIGH FLOW IN LINE METER

HIGH FLOW IN LINE METER

FEATURES

Gear in line meters with digital display.
The meter has two separate displays in litres, a resettable 4 digit batch display and a 6 digit permanent totaliser.
Meters are factory calibrated but for maximum accuracy they can easily be calibrated in the field.
Meters are compatible with lubricants up to SAE 240, diesel, glycol solutions and other water based fluids.

Specifications:

	SAMOA 366726
Accuracy	+/- 0.5 %
Minimum flow rate	9.5 l/min ( 2.5 gpm)
Maximum flow rate	100 l/min (26.4 gpm)
Maximum working pressure	30 bar (430 psi)
Pressure drop	0.5 bar (7 psi)
Inlet and outlet threads	1" BSP (F)
Maximum working temperature	60� C (140�F)
Power	2 x AAA batteries

Products in the same category

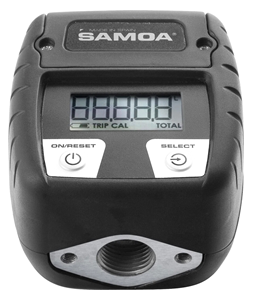

SAMOA 366000

IN LINE ELECTRONIC METER

FEATURES

Electronic metered specifically designed to measure volumes of all kind of synthetic and mineral oils.

SAMOA manufactures an oval-gear electronic meters, which can be programmed to register in either liters, quarts, pints or gallons to cover the needs of fluid dispensing ranging from small repair shops to car dealerships, trucks, fleet, off-road, mining and marine maintenance facilities.

Units of measure Batch: Liters, quarts, pints, gallons.

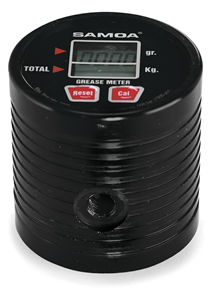

SAMOA 411100

IN LINE DIGITAL GREASE METER

FEATURES:

High pressure oval gear meter with digital display.

Batch display in grams (up to 9999 g) and permanent totaliser in kilograms (up to 999999 kg).
