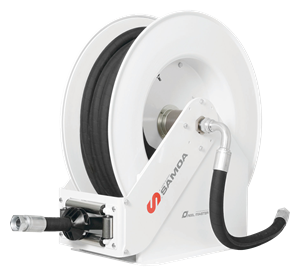

SAMOA HEAVY DUTY LARGE CAPACITY HOSE REEL

HEAVY DUTY LARGE CAPACITY HOSE REEL

FEATURES

Very tough construction large delivery reels, able to stand regular use and abuse in intensive duty applications.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Hose guide arm can be placed in two different positions to accommodate any method of mounting.
Narrow footprint allows accommodating more reels on the same surface.
Hose reel with hose capacity up to 15mx1-1/2" hose.

References:

	Usage	Hose diameter (")	Length (m)	Inlet thread (bsp)	Outlet thread (bsp)	Maximum pressure (bar)	Weight (kg)
SAMOA 508810	Water and diesel	1 1/2	15	1 1/2	1 1/2	20	87

Products in the same category

SAMOA 508125

HEAVY DUTY LARGE CAPACITY HOSE REEL

For air, water and diesel

Diameter: 1"

Length: 15m

Maximum pressure: 25 Bar

Inlet thread: 1" BSP

Outlet thread: 1" BSP

Weight: 50 kg

SAMOA 508225

HEAVY DUTY LARGE CAPACITY HOSE REEL

For oil

Diameter: 1"

Length: 15m

Maximum pressure: 90 Bar

Inlet thread: 1" BSP

Outlet thread: 1" BSP

Weight: 56 kg

SAMOA 508234

HEAVY DUTY LARGE CAPACITY HOSE REEL

For oil

Diameter: 3/4"

Length: 20m

Maximum pressure: 100 Bar

Inlet thread: 1" BSP

Outlet thread: 3/4" BSP

Weight: 55 kg

SAMOA 508244

HEAVY DUTY LARGE CAPACITY HOSE REEL

For oil

Diameter: 3/4"

Length: 25m

Maximum pressure: 100 Bar

Inlet thread: 1" BSP

Outlet thread: 3/4" BSP

Weight: 57 kg

SAMOA 508252

HEAVY DUTY LARGE CAPACITY HOSE REEL

For oil

Diameter: 1/2"

Length: 30m

Maximum pressure: 160 Bar

Inlet thread: 1" BSP

Outlet thread: 1/2" BSP

Weight: 55 kg
