Hose length (m) |
Diameter (mm) |
Inlet hose (m) |
Inlet thread (M) ("BSP) |
Outlet thread (M) ("BSP) |
|---|---|---|---|---|---|
15 |
8 |
0.8 |
3/8 |
1/4 |
|
12 |
10 |
0.8 |
3/8 |
3/8 |

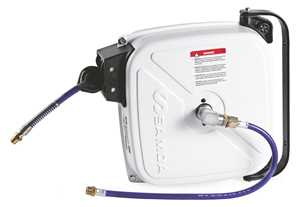

Hose length: 12 m.
Diameter: 10 mm.
Inlet hose: 0.8 m.
Inlet thread: 3/8" BSP (M).
Outlet thread: 3/8" BSP (M).

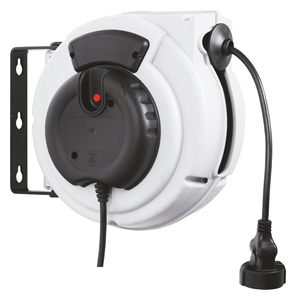

Compact reel with high resistance thermoplastic enclosure.
Compact design, with wide outlet for a comfortable and friction free cable extension.
All reels include pivoting bracket, cable specified for each model, and cable overload breaker.
A locking mechanism allows the cable to be pulled out and latched at the desired length.
The locking mechanism is released by pulling the cable out just beyond the latched position and the cable is then automatically rewound.
If preferred, by making a quick adjustment to deactivate the locking mechanism the cable reel can also be used free running.
Cable length: 15m
Cable type: H05VV-F 3 x 1.5mm�
Maximum power with cable coiled: 800W
Maximum power with cable extended: 2000W
