| Pressure ratio | 3:1 |
| Air piston diameter (mm) | 51 |
| Air piston stroke (mm) | 75 |

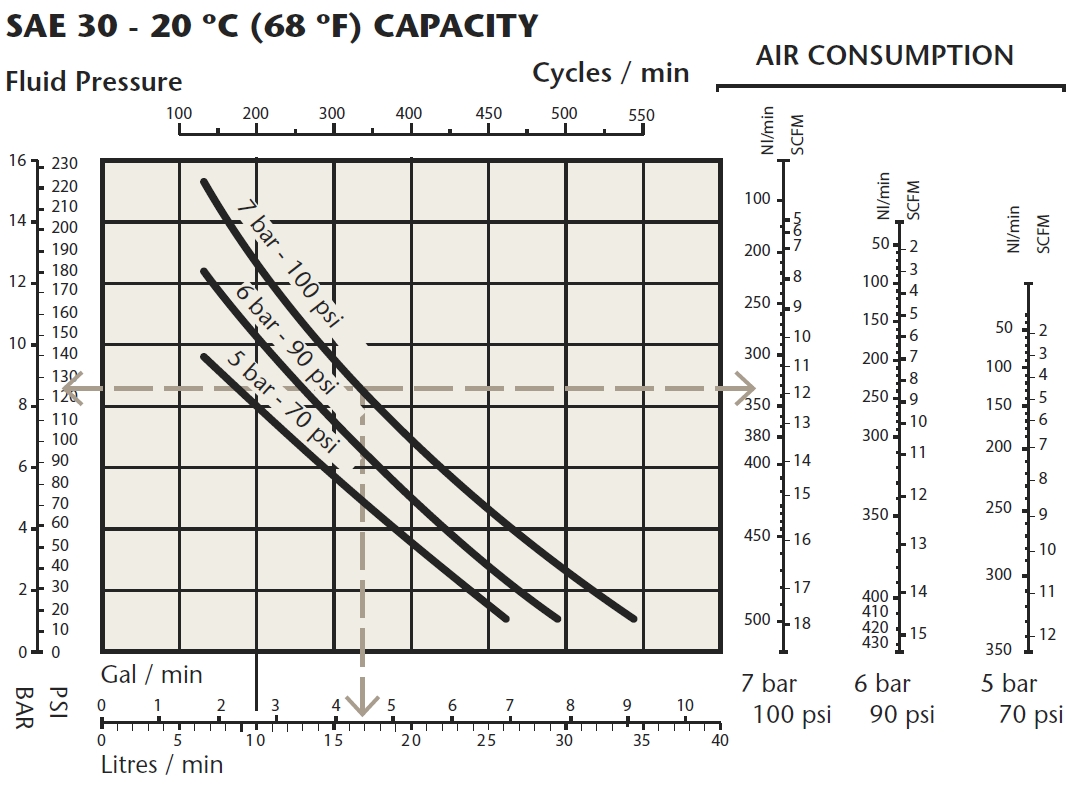

| Maximum free flow capacity (l/min) | 35 |
| Air pressure range (bar) | 3 - 10 |
| Maximum fluid pressure (bar) | 30 |
| Air inlet (F) (BSPT) | 1/4 |
| Fluid outlet (F) (BSP) | 1/2 |
| Noise level (dB) | 80 |
|
|
Application |

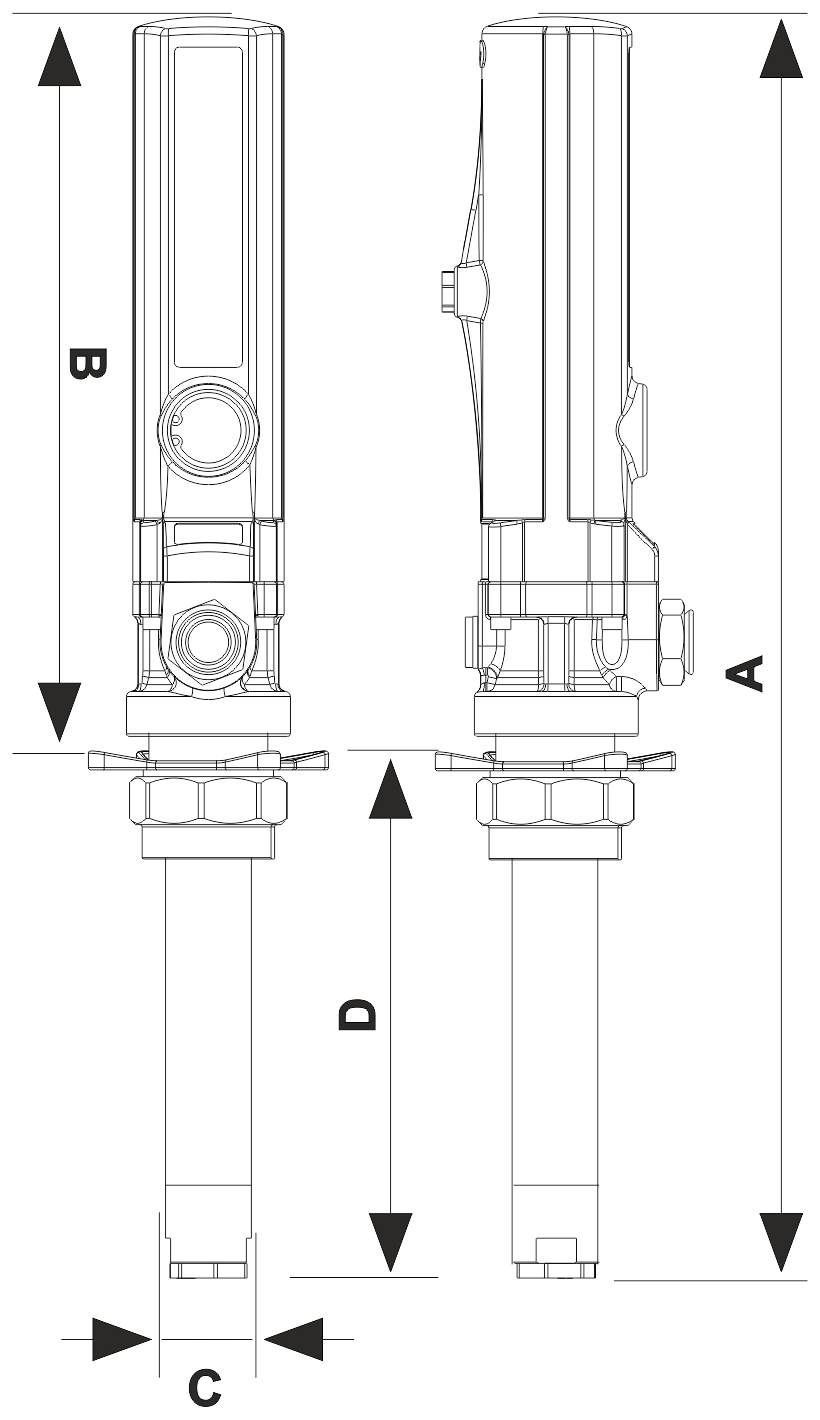

Total height (A) (mm) |
Pump tube height (D) (mm) |
Pump tube diameter (C) (mm) |
Gross weight (kg) |
|---|---|---|---|---|---|
Universal stub pump |
495 |
200 |
34 |
2 |
|
205 l (55 gal) drum bung mounted |
1,200 |
905 |
34 |
3.5 |
Application: 205 l (55 gal) drum bung mounted
Suction tube height: 910 mm
Total height: 1,290 mm
Weight: 8.3 kg
Application: 205 l (55 gal) drum bung mounted
Suction tube height: 915 mm
Total height: 1,300 mm
Weight: 7.4 kg
