Castor Trading - FACOM 1/2" drive impact sockets and accessories

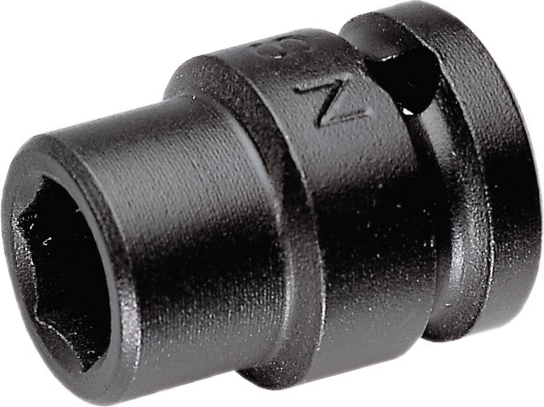

1/2" DRIVE METRIC 6-POINT IMPACT SOCKETS

LEARN MORE

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

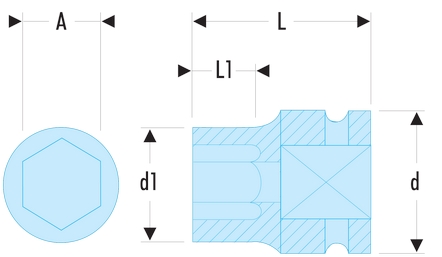

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NS.8A	8	24	15	38	21	BA.20B	GA.20B	70
FACOM NS.9A	9	24	16	38	21	BA.20B	GA.20B	70
FACOM NS.10A	10	24	16	38	21	BA.20B	GA.20B	75
FACOM NS.11A	11	24	18	38	21	BA.20B	GA.20B	75
FACOM NS.12A	12	24	20	38	21	BA.20B	GA.20B	75
FACOM NS.13A	13	24	21	38	21	BA.20B	GA.20B	75
FACOM NS.14A	14	24	22	38	21	BA.20B	GA.20B	85
FACOM NS.15A	15	24	24	38	21	BA.20B	GA.20B	105
FACOM NS.16A	16	24	24	38	21	BA.20B	GA.20B	105
FACOM NS.17A	17	25	26	38	21	BA.20B	GA.20B	110
FACOM NS.18A	18	25	28	38	21	BA.20B	GA.20B	110
FACOM NS.19A	19	25	28	38	21	BA.20B	GA.20B	110
FACOM NS.20A	20	25	30	38	21	BA.20B	GA.20B	110
FACOM NS.21A	21	25	30	38	21	BA.20B	GA.20B	150
FACOM NS.22A	22	30	32	38	21	BA.25B	GA.25B	150
FACOM NS.23A	23	30	34	38	21	BA.25B	GA.25B	150
FACOM NS.24A	24	30	34	38	21	BA.25B	GA.25B	160
FACOM NS.26A	26	30	36	42	23	BA.25B	GA.25B	180
FACOM NS.27A	27	30	38	43	23	BA.25B	GA.25B	200
FACOM NS.28A	28	30	40	44	25	BA.25B	GA.25B	260
FACOM NS.29A	29	30	40	44	25	BA.25B	GA.25B	260
FACOM NS.30A	30	30	42	44	25	BA.25B	GA.25B	270
FACOM NS.32A	32	30	44	44	25	BA.25B	GA.25B	280

1/2" DRIVE INCH 6-POINT IMPACT SOCKETS

LEARN MORE

Standards: ASME B107.2
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (")	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NS.3/8A	3/8	24	16	38	17	BA.20B	GA.20B	75
FACOM NS.7/16A	7/16	24	18	38	17	BA.20B	GA.20B	75
FACOM NS.1/2A	1/2	24	21	38	17	BA.20B	GA.20B	75
FACOM NS.9/16A	9/16	24	22	38	17	BA.20B	GA.20B	80
FACOM NS.5/8A	5/8	24	24	38	17	BA.25B	GA.20B	105
FACOM NS.11/16A	11/16	25	25	38	21	BA.20B	GA.20B	110
FACOM NS.3/4A	3/4	25	28	38	21	BA.25B	GA.20B	120
FACOM NS.13/16A	13/16	25	30	38	21	BA.20B	GA.20B	105
FACOM NS.7/8A	7/8	30	32	38	21	BA.25B	GA.25B	160
FACOM NS.15/16A	15/16	30	34	38	21	BA.25B	GA.25B	160
FACOM NS.1PA	1	30	36	42	23	BA.25B	GA.25B	180
FACOM NS.1P1/16A	1 1/16	30	38	43	23	BA.25B	GA.25B	205

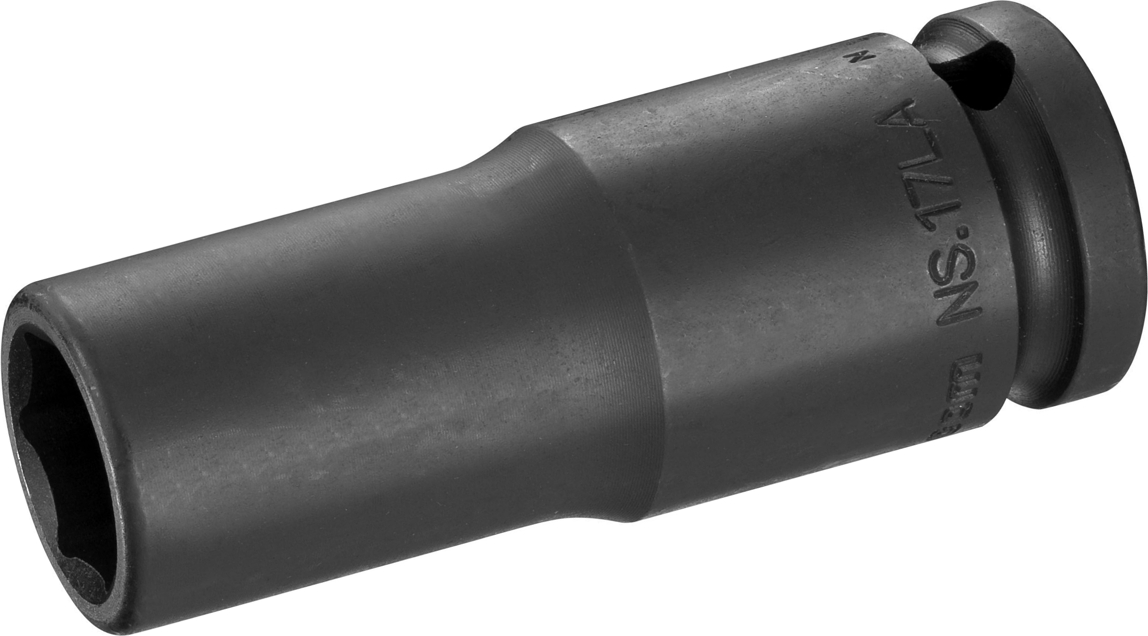

1/2" DRIVE LONG-REACH METRIC 6-POINT IMPACT SOCKETS

LEARN MORE

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NS.8LA	8	24	15	78	21	BA.20B	GA.20B	130
FACOM NS.10LA	10	24	17	78	21	BA.20B	GA.20B	150
FACOM NS.11LA	11	24	18	78	21	BA.20B	GA.20B	160
FACOM NS.12LA	12	24	20	78	21	BA.20B	GA.20B	165
FACOM NS.13LA	13	24	21	78	21	BA.20B	GA.20B	185
FACOM NS.14LA	14	24	22	78	21	BA.20B	GA.20B	200
FACOM NS.16LA	16	24	24	78	21	BA.20B	GA.20B	220
FACOM NS.17LA	17	26	26	78	21	BA.20B	GA.20B	250
FACOM NS.18LA	18	25	28	78	21	BA.20B	GA.20B	275
FACOM NS.19LA	19	25	28	78	21	BA.20B	GA.20B	270
FACOM NS.21LA	21	25	30	78	21	BA.20B	GA.20B	280
FACOM NS.22LA	22	30	32	78	24	BA.25B	GA.25B	290
FACOM NS.23LA	23	30	34	78	24	BA.25B	GA.25B	300
FACOM NS.24LA	24	30	34	78	24	BA.25B	GA.25B	300
FACOM NS.26LA	26	30	36	78	24	BA.25B	GA.25B	305
FACOM NS.27LA	27	30	38	78	24	BA.25B	GA.25B	310
FACOM NS.28LA	28	30	40	78	24	BA.25B	GA.25B	315
FACOM NS.29LA	29	30	40	78	24	BA.25B	GA.25B	330
FACOM NS.30LA	30	30	42	78	24	BA.25B	GA.25B	340
FACOM NS.32LA	32	30	44	78	24	BA.25B	GA.25B	340

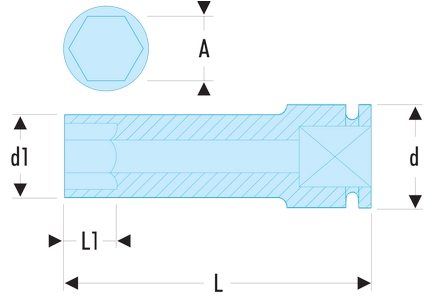

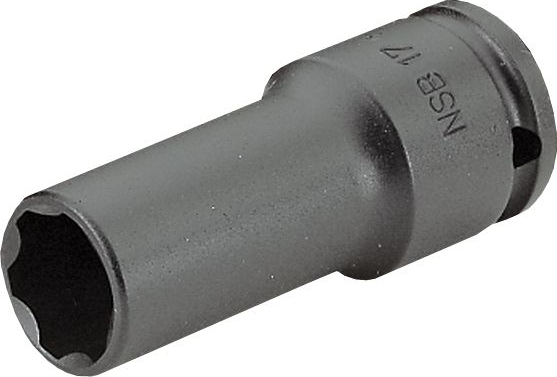

1/2" DRIVE LONG-REACH METRIC THIN-WALL 6-POINT IMPACT SOCKETS

LEARN MORE

6-point convex pattern for increased resilience.
Thin wall for better access.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSB.10	10	24	17	80	78	BA.20B	GA.20B	170
FACOM NSB.13	13	24	21	80	78	BA.20B	GA.20B	210
FACOM NSB.15	15	24	24	80	78	BA.20B	GA.20B	220
FACOM NSB.16	16	24	24	80	78	BA.20B	GA.20B	230
FACOM NSB.17	17	26	26	80	78	BA.20B	GA.20B	245
FACOM NSB.18	18	25	28	80	78	BA.20B	GA.20B	245
FACOM NSB.19	19	25	28	80	78	BA.20B	GA.20B	240
FACOM NSB.21	21	25	30	80	78	BA.20B	GA.20B	245
FACOM NSB.22	22	30	32	85	78	BA.25B	GA.25B	250
FACOM NSB.24	24	30	34	85	78	BA.25B	GA.25B	280
FACOM NSB.27	27	30	38	85	78	BA.25B	GA.25B	325
FACOM NSB.30	30	30	42	85	78	BA.25B	GA.25B	330
FACOM NSB.32	32	30	44	85	78	BA.25B	GA.25B	335

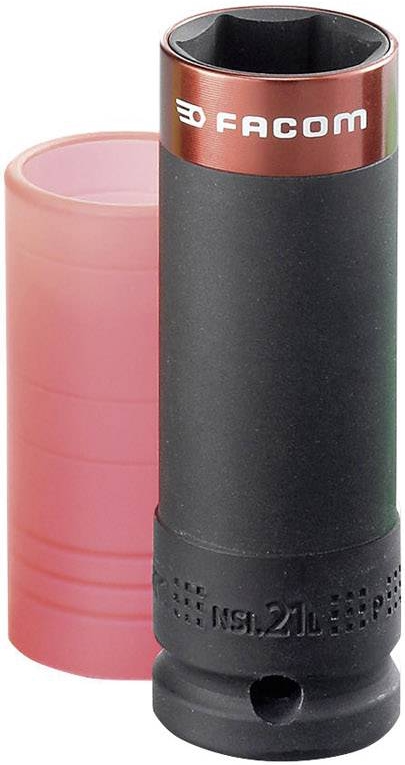

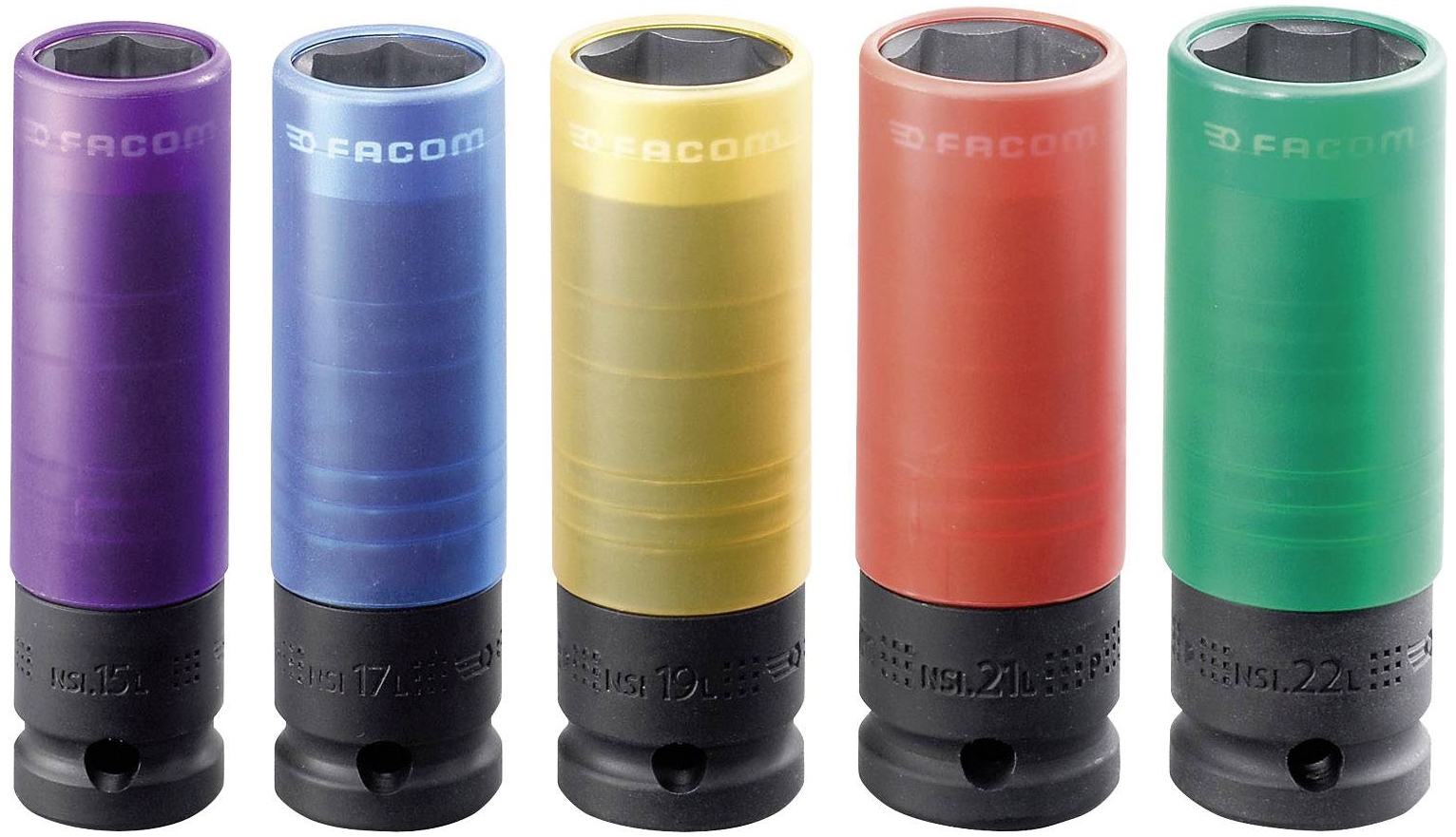

1/2" DRIVE IMPACT SOCKETS FOR WHEEL NUTS

LEARN MORE

Up to 7 times stronger.
Separation with metallic strapping.
Teflon lining to protect alloy rims.

References:

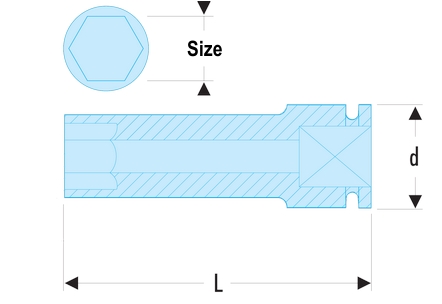

	Size (mm)	L (mm)	d (mm)	Weight (g)

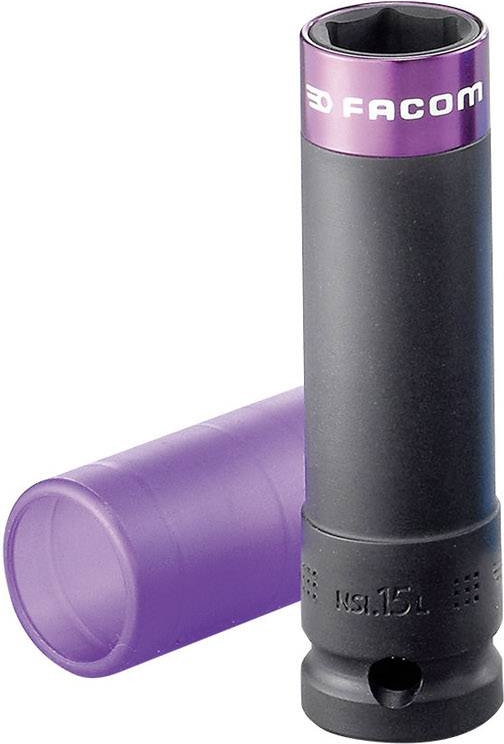

FACOM NSI.15L	15	78	25	156

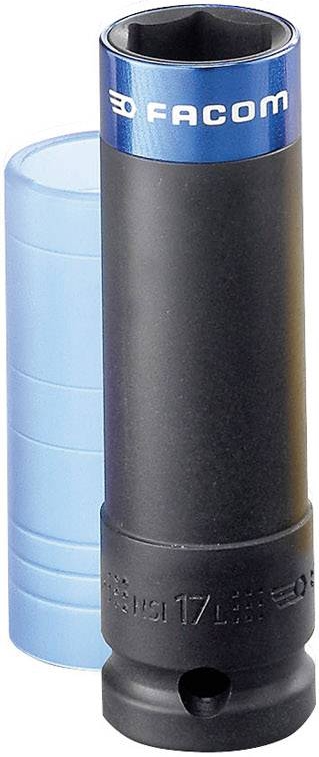

FACOM NSI.17L	17	78	25	180

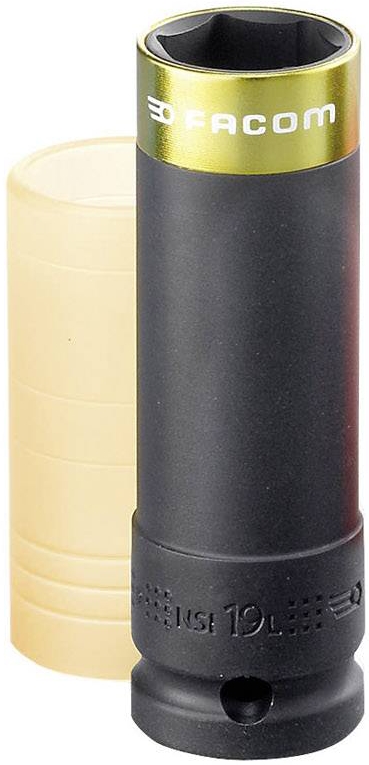

FACOM NSI.19L	19	78	25	210
FACOM NSI.21L	21	78	25	252

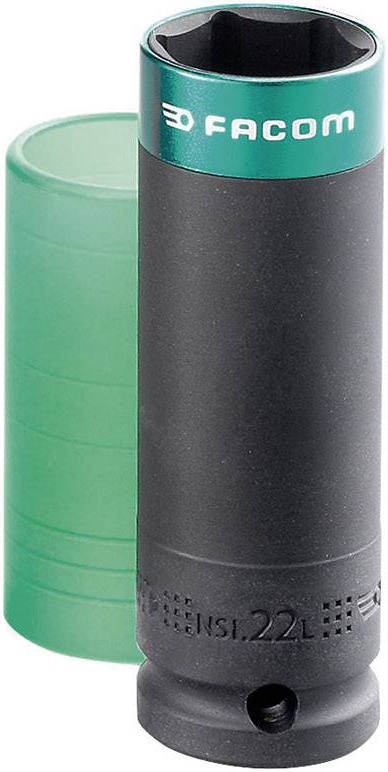

FACOM NSI.22L	22	78	25	258

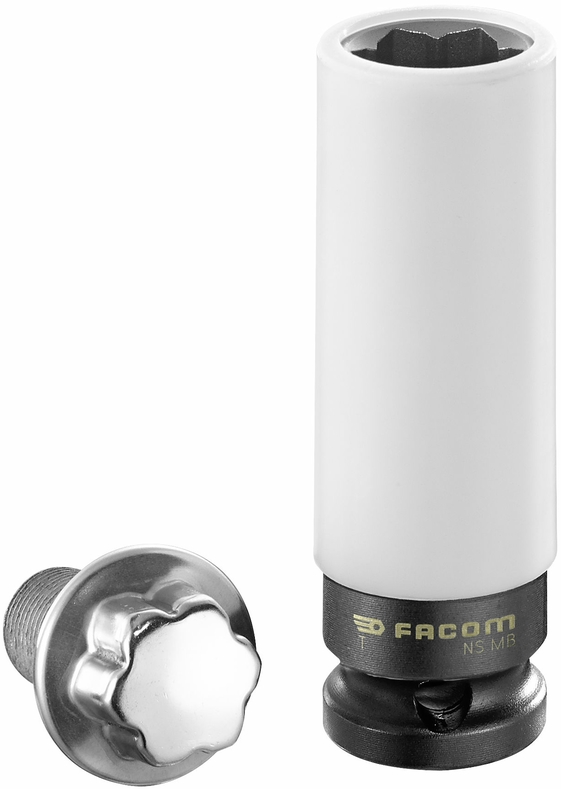

1/2" DRIVE IMPACT SOCKETS FOR MERCEDES WHEEL NUTS

LEARN MORE

Up to 7 times stronger.
Rim protection tube.
Length: 80.3mm
Weight: 172mm

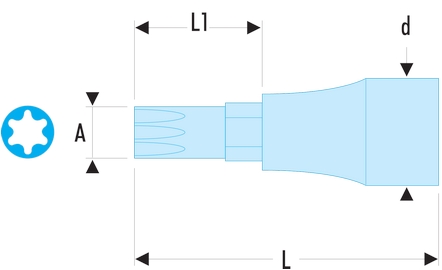

1/2" DRIVE IMPACT BITS FOR TORX� HEADS

LEARN MORE

For your safety, use impact sockets and accessories with the appropriate rings and pins.
For Torx� male drive fasteners.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSX.30B	T30	5.58	25	55	15	BA.20B	GA.20B	90
FACOM NSX.40B	T40	6.67	25	55	15	BA.20B	GA.20B	95
FACOM NSX.45B	T45	7.85	25	55	15	BA.20B	GA.20B	95
FACOM NSX.50B	T50	8.89	25	55	15	BA.20B	GA.20B	100
FACOM NSX.55B	T55	11.28	25	55	15	BA.20B	GA.20B	105
FACOM NSX.60B	T60	13.36	25	55	15	BA.20B	GA.20B	110

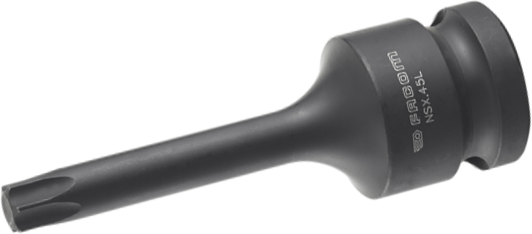

1/2" DRIVE LONG IMPACT BITS FOR TORX� HEADS

LEARN MORE

For your safety, use impact sockets and accessories with the appropriate rings and pins.
For Torx� female drive fasteners.
Douille tournevis monobloc.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSX.20L	T20	3.84	25	78	15	BA.20B	GA.20B	80
FACOM NSX.25L	T25	4.4	25	78	15	BA.20B	GA.20B	80
FACOM NSX.30L	T30	5.49	25	78	15	BA.20B	GA.20B	80
FACOM NSX.40L	T40	6.6	25	78	15	BA.20B	GA.20B	80
FACOM NSX.45L	T45	7.77	25	78	15	BA.20B	GA.20B	85
FACOM NSX.50L	T50	8.79	25	78	15	BA.20B	GA.20B	90
FACOM NSX.55L	T55	11.17	25	78	15	BA.20B	GA.20B	105
FACOM NSX.60L	T60	13.2	25	78	15	BA.20B	GA.20B	120
FACOM NSX.70L	T70	15.49	25	78	15	BA.20B	GA.20B	135

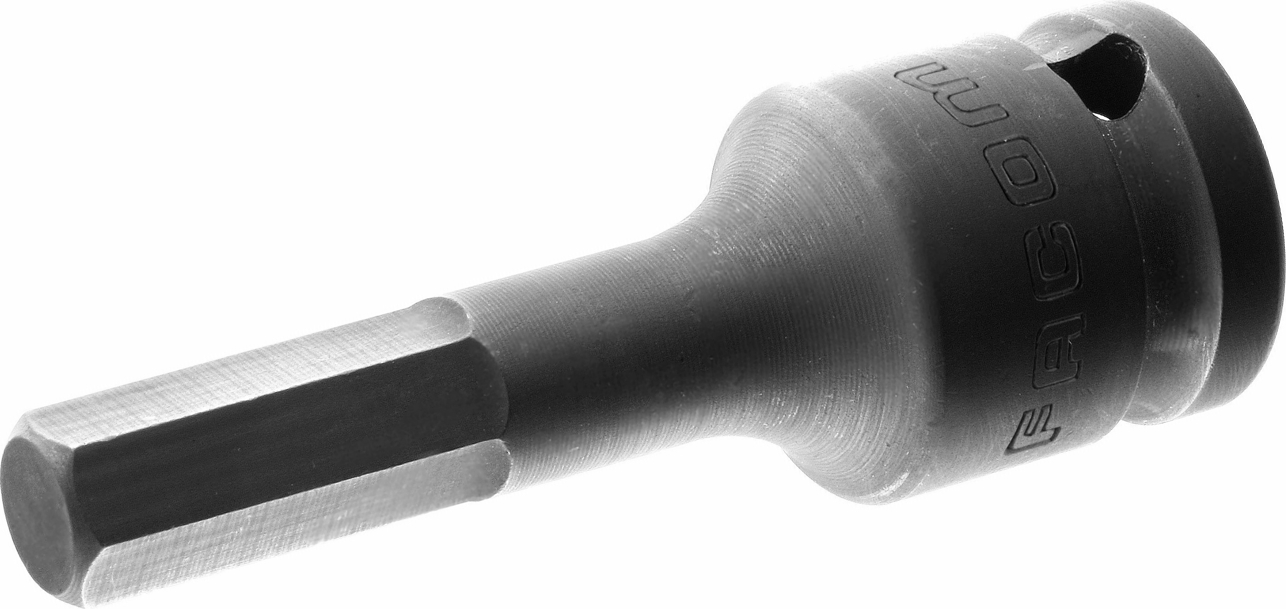

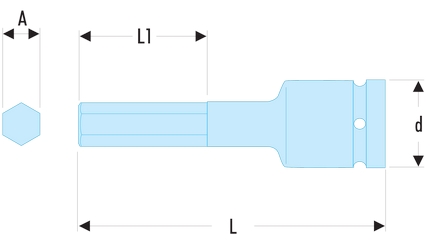

1/2" DRIVE METRIC IMPACT BITS FOR HEXAGON SOCKET HEADS

LEARN MORE

For your safety, use impact sockets and accessories with the appropriate rings and pins.
Monobloc driver socket.

References:

	Size (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSHM.5	5	25	79	16	BA.20B	GA.20B	70
FACOM NSHM.6	6	25	79	16	BA.20B	GA.20B	70
FACOM NSHM.8	8	25	79	25	BA.20B	GA.20B	90
FACOM NSHM.10	10	25	79	27	BA.20B	GA.20B	110
FACOM NSHM.12	12	25	79	27	BA.20B	GA.20B	130
FACOM NSHM.14	14	25	79	27	BA.20B	GA.20B	130
FACOM NSHM.17	17	25	79	27	BA.20B	GA.20B	170
FACOM NSHM.19	19	25	79	27	BA.20B	GA.20B	190

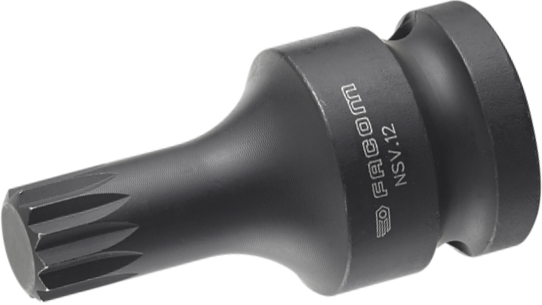

1/2" DRIVE IMPACT BITS FOR XZN� SOCKET HEADS

LEARN MORE

For your safety, use impact sockets and accessories with the appropriate rings and pins.
For XZN� female drive fasteners.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSV.6	6	5.97	25	50	15	BA.20B	GA.20B	60
FACOM NSV.8	8	7.16	25	50	15	BA.20B	GA.20B	65
FACOM NSV.10	10	9.56	25	50	15	BA.20B	GA.20B	70
FACOM NSV.12	12	11.36	25	50	15	BA.20B	GA.20B	75
FACOM NSV.14	14	13.17	25	50	15	BA.20B	GA.20B	80
FACOM NSV.16	16	15.58	25	50	15	BA.20B	GA.20B	90
FACOM NSV.18	18	16.79	25	50	15	BA.20B	GA.20B	95

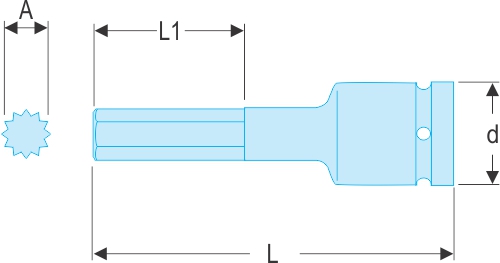

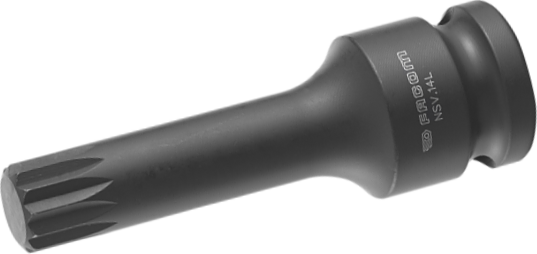

1/2" DRIVE LONG IMPACT BITS FOR XZN� SOCKET HEADS

LEARN MORE

For your safety, use impact sockets and accessories with the appropriate rings and pins.
For XZN� female drive fasteners.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NSV.10L	10	9.56	25	78	15	BA.20B	GA.20B	95
FACOM NSV.12L	12	11.36	25	78	15	BA.20B	GA.20B	105
FACOM NSV.14L	14	13.17	25	78	15	BA.20B	GA.20B	120
FACOM NSV.16L	16	15.58	25	78	15	BA.20B	GA.20B	140
FACOM NSV.18L	18	16.79	25	78	15	BA.20B	GA.20B	150
