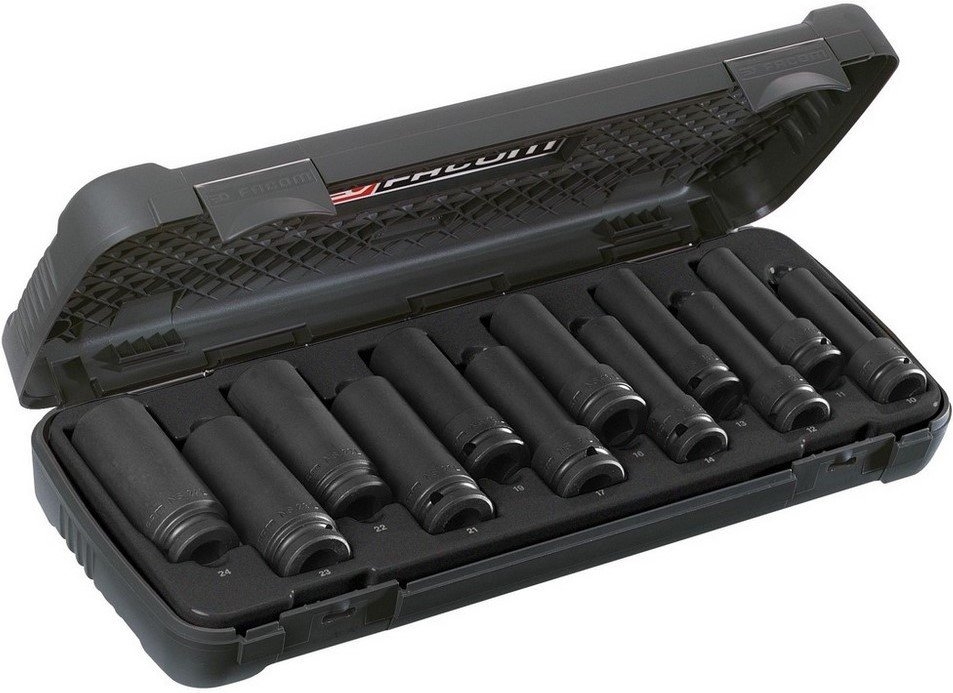

FACOM 1/2" DRIVE LONG-REACH METRIC 6-POINT IMPACT SOCKETS

1/2" DRIVE LONG-REACH METRIC 6-POINT IMPACT SOCKETS

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NS.8LA	8	24	15	78	21	BA.20B	GA.20B	130
FACOM NS.10LA	10	24	17	78	21	BA.20B	GA.20B	150
FACOM NS.11LA	11	24	18	78	21	BA.20B	GA.20B	160
FACOM NS.12LA	12	24	20	78	21	BA.20B	GA.20B	165
FACOM NS.13LA	13	24	21	78	21	BA.20B	GA.20B	185
FACOM NS.14LA	14	24	22	78	21	BA.20B	GA.20B	200
FACOM NS.16LA	16	24	24	78	21	BA.20B	GA.20B	220
FACOM NS.17LA	17	26	26	78	21	BA.20B	GA.20B	250
FACOM NS.18LA	18	25	28	78	21	BA.20B	GA.20B	275
FACOM NS.19LA	19	25	28	78	21	BA.20B	GA.20B	270
FACOM NS.21LA	21	25	30	78	21	BA.20B	GA.20B	280
FACOM NS.22LA	22	30	32	78	24	BA.25B	GA.25B	290
FACOM NS.23LA	23	30	34	78	24	BA.25B	GA.25B	300
FACOM NS.24LA	24	30	34	78	24	BA.25B	GA.25B	300
FACOM NS.26LA	26	30	36	78	24	BA.25B	GA.25B	305
FACOM NS.27LA	27	30	38	78	24	BA.25B	GA.25B	310
FACOM NS.28LA	28	30	40	78	24	BA.25B	GA.25B	315
FACOM NS.29LA	29	30	40	78	24	BA.25B	GA.25B	330
FACOM NS.30LA	30	30	42	78	24	BA.25B	GA.25B	340
FACOM NS.32LA	32	30	44	78	24	BA.25B	GA.25B	340
