Capacity: 500 cc

Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.

Bulk grease loading by suction, or using a filler pump.

Heavy duty cast iron head with precision fit piston.

Maximum working pressure above 300 bar.

Barrel manufactured with heavy gauge precision steel tube.

Large barrel threads for fast and easy reloading.

Follower plate fastening by ratchet.

lever action grease pump

Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).

Operates when pushed on grease nipples.

Bulk grease loading, 130 cc barrel.

Includes Zerk and cupped nozzles.

Maximum working pressure: 200 bar (2.900 psi).

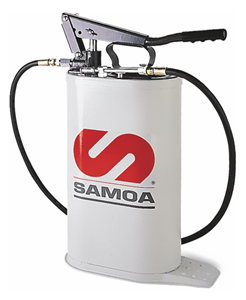

Heavy duty high capacity grease pump with 3 alternative lever positions

Can be used under any operating conditions and with all type of lubricants (winter/summer, high or low viscosity grease, oil).

Maximum pressure range between 175 to 350 bar (2500 to 5000 psi)

With a delivery of 20 gr, 15 gr or 10 gr per stroke depending on the position of the lever chosen.

Steel and leak proof 16 Kg container with oval shape for easy handling and stability.

Pump includes 1.5 m high pressure hose with a 3-jaw hydraulic connector.

Pedal action heavy-duty grease pump.

Spring primed follower plate and cast iron pump mechanism ensures that the pump can be used even with extremely viscous grease.

Maximum pressure: 500 bar (7,150 psi).

Delivery per pedal stroke: 2 gr.

Steel leak proof reservoir, can hold up to 5 kg of grease.

Includes air bleeder valve and 2 m high pressure grease hose with a four jaw hydraulic connector with check valve.

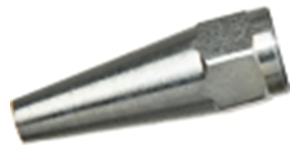

For concave type nipples DIN 3405

Length: 43 mm

For concave type nipples DIN 3405.

With retractable safety sleeve

Length: 96 mm
