Capacity: 500 cc
Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.
Bulk grease loading by suction, or using a filler pump.
Heavy duty cast iron head with precision fit piston.
Maximum working pressure above 300 bar.
Barrel manufactured with heavy gauge precision steel tube.
Large barrel threads for fast and easy reloading.
Follower plate fastening by ratchet.

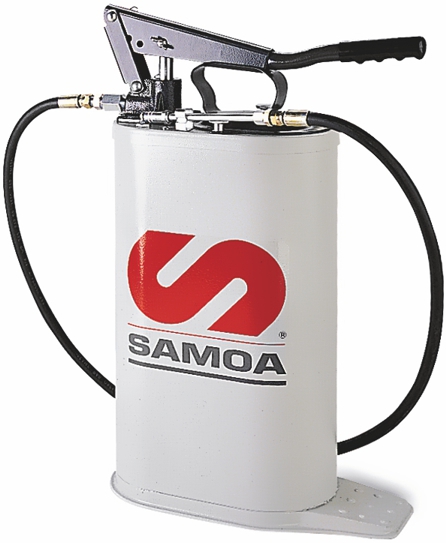

lever action grease pump
Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).

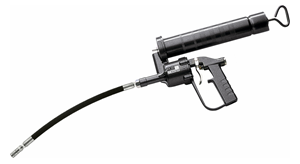

High pressure, 60:1 pressure ratio, air operated grease pumps.
They can be connected to a compressed air line or to an air brake circuit of a comercial vehicle.
Delivery: 1 cc each time the trigger is pressed.
Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
Includes a 500 cc barrel with a spring driven grease follower.
Three way loading: 400 gr (14 oz) grease cartridges, bulk grease suction or with a grease filler pump.
Supplied with 400 mm double steel braid reinforced outlet hose and 4 jaw connector and filler nipple.
Pedal action heavy-duty grease pump.
Spring primed follower plate and cast iron pump mechanism ensures that the pump can be used even with extremely viscous grease.
Maximum pressure: 500 bar (7,150 psi).
Delivery per pedal stroke: 2 gr.
Steel leak proof reservoir, can hold up to 5 kg of grease.
Includes air bleeder valve and 2 m high pressure grease hose with a four jaw hydraulic connector with check valve.
