Capacity: 500 cc
Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.
Bulk grease loading by suction, or using a filler pump.
Heavy duty cast iron head with precision fit piston.
Maximum working pressure above 300 bar.
Barrel manufactured with heavy gauge precision steel tube.
Large barrel threads for fast and easy reloading.
Follower plate fastening by ratchet.

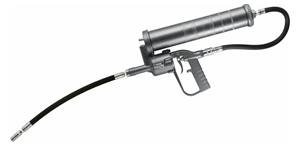

lever action grease pump
Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).

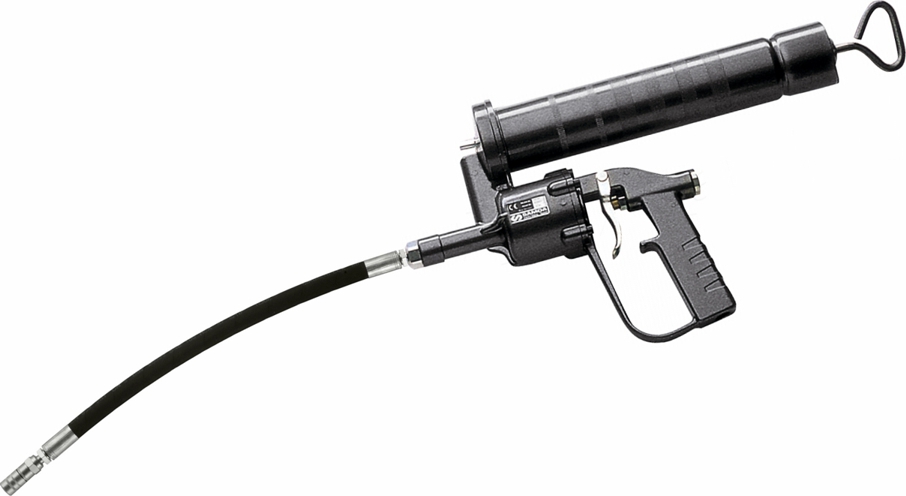

High pressure, 60:1 pressure ratio, air operated grease pumps.
They can be connected to a compressed air line or to the air brake circuit of a commercial vehicle.
Delivery: 1 cc each time the trigger is pressed.
Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
Includes a 1000 cc barrel with an air driven grease follower.
Recommended for high viscosity grease and low temperatures.
Supplied with 400 mm double steel braid reinforced outlet hose with 4 jaw connector (PN 141 040) and filler nipple.
Bulk grease loading using a grease filler pump.
Operates when pushed on grease nipples.
Bulk grease loading, 130 cc barrel.
Includes Zerk and cupped nozzles.
Maximum working pressure: 200 bar (2.900 psi).
For use with greasing units on hydraulic type nipples (DIN 71412).
Connector head and jaws manufactured in hardened steel.
