Capacity: 500 cc
Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.
Bulk grease loading by suction, or using a filler pump.
Heavy duty cast iron head with precision fit piston.
Maximum working pressure above 300 bar.
Barrel manufactured with heavy gauge precision steel tube.
Large barrel threads for fast and easy reloading.
Follower plate fastening by ratchet.
lever action grease pump
Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).

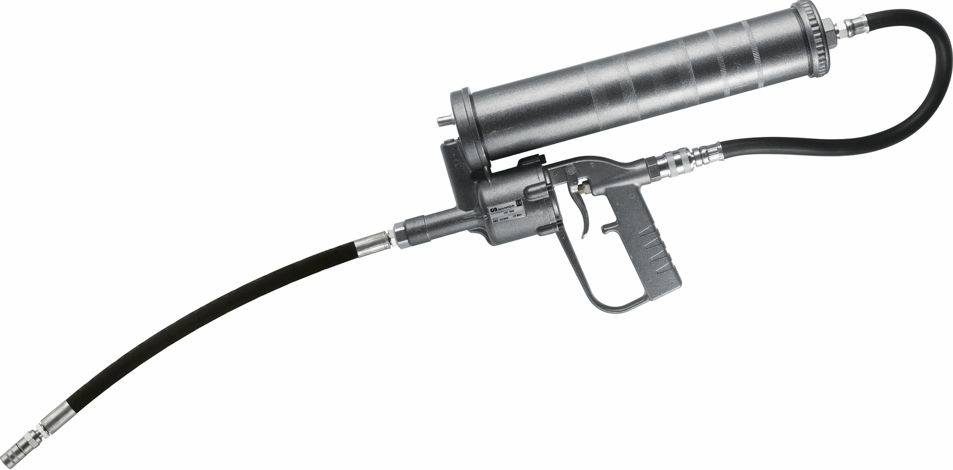

High pressure, 60:1 pressure ratio, air operated grease pumps.
They can be connected to a compressed air line or to an air brake circuit of a comercial vehicle.
Delivery: 1 cc each time the trigger is pressed.
Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
Includes a 500 cc barrel with a spring driven grease follower.
Three way loading: 400 gr (14 oz) grease cartridges, bulk grease suction or with a grease filler pump.
Supplied with 400 mm double steel braid reinforced outlet hose and 4 jaw connector and filler nipple.
Heavy duty high capacity grease pump with 3 alternative lever positions
Can be used under any operating conditions and with all type of lubricants (winter/summer, high or low viscosity grease, oil).
Maximum pressure range between 175 to 350 bar (2500 to 5000 psi)
With a delivery of 20 gr, 15 gr or 10 gr per stroke depending on the position of the lever chosen.
Steel and leak proof 16 Kg container with oval shape for easy handling and stability.
Pump includes 1.5 m high pressure hose with a 3-jaw hydraulic connector.

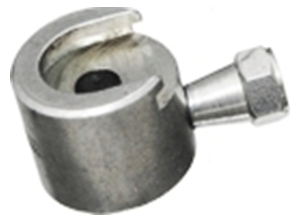

Button head connectors
For use with button head nipples.
Maximum pressure: 400 bar.
Recommended with hand equipment at maximum pressure 150 bar.
For ? 15 - 16 mm nipples.
