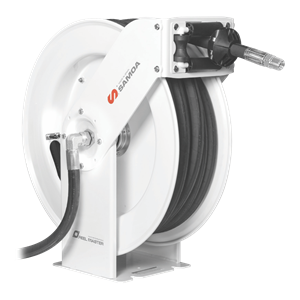

SAMOA 505332 HEAVY DUTY HOSE REELS

HEAVY DUTY HOSE REELS

FEATURES

Very tough construction able to stand regular use and abuse in intensive duty applications.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Hose guide arm can be placed in different positions to accommodate any method of mounting.
Narrow footprint allows accommodating more reels on the same surface.
Hose reels with hose include 0.8 m inlet hose.
Maximum hose capacity: 20mx1/2" hose or 15mx3/4" hose.

Specifications:

	SAMOA 505332
Usage	Grease
Hose diameter (")	1/2
Length (m)	20
Inlet thread (bsp)	1/2
Outlet thread (bsp)	1/2
Maximum pressure (bar)	400
Weight (kg)	39

Products in the same category

SAMOA 504150

HEAVY DUTY HOSE REELS

For air, water, antifreeze solutions

Diameter: 1/2"

Length: 15m

Maximum pressure: 20 Bar

Inlet thread: 1/2" BSP

Outlet thread: 1/2" BSP

Weight: 24 kg

SAMOA 504250

HEAVY DUTY HOSE REELS

For oil

Diameter: 1/2"

Length: 15m

Maximum pressure: 160 Bar

Inlet thread: 1/2" BSP

Outlet thread: 1/2" BSP

Weight: 24 kg

SAMOA 504350

HEAVY DUTY HOSE REELS

For grease

Diameter: 1/4"

Length: 15m

Maximum pressure: 400 Bar

Inlet thread: 1/4" BSP

Outlet thread: 1/4" BSP

Weight: 26 kg

SAMOA 504351

HEAVY DUTY HOSE REELS

For grease

Diameter: 3/8"

Length: 15m

Maximum pressure: 400 Bar

Inlet thread: 3/8" BSP

Outlet thread: 1/4" BSP

Weight: 26 kg

SAMOA 504450

HEAVY DUTY HOSE REELS

For high pressure hot water

Diameter: 3/8"

Length: 15m

Maximum pressure: 400 Bar

Inlet thread: 3/8" BSP

Outlet thread: 1/4" BSP

Weight: 26 kg

SAMOA 505224

HEAVY DUTY HOSE REELS

For air, water, diesel and oil.

Diameter: 3/4"

Length: 15m

Maximum pressure: 125 Bar

Inlet thread: 3/4" BSP

Outlet thread: 3/4" BSP

Weight: 38 kg
