Castor Trading - SAMOA Open heavy duty hose reels

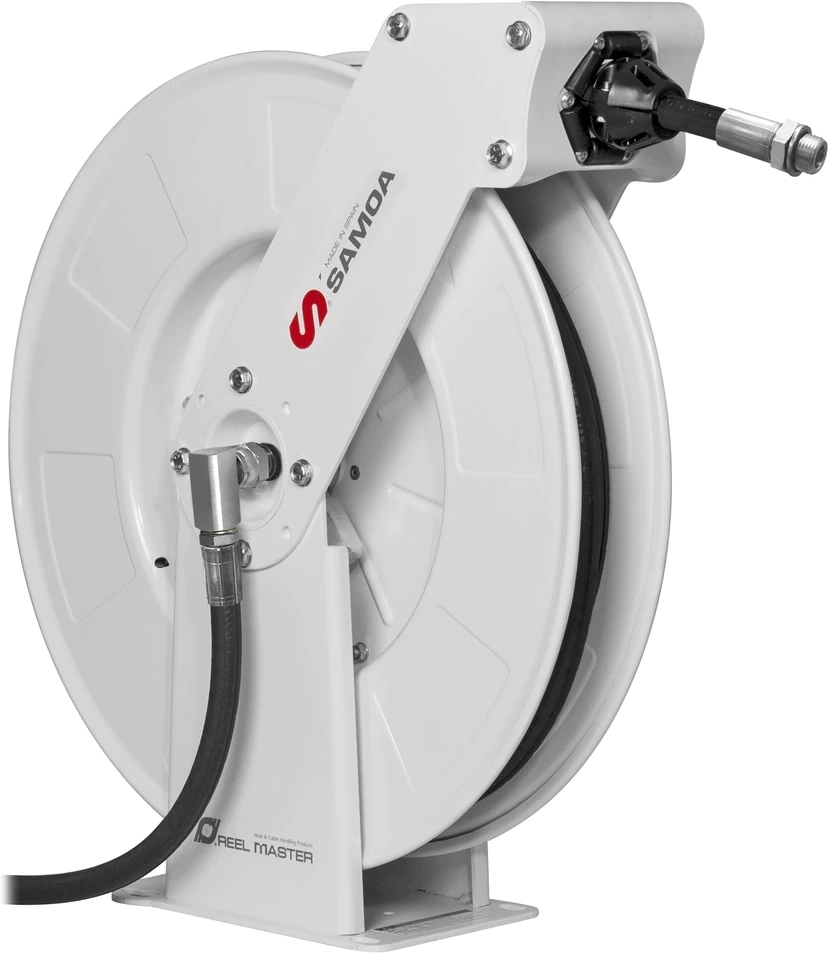

HEAVY DUTY HOSE REELS

LEARN MORE

Very tough construction able to stand regular use and abuse in Intensive Duty applications.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Hose guide arm can be placed in different positions to accommodate any method of mounting.
Narrow footprint allows accommodating more reels on the same surface.
Hose reels with hose include 0.8 m inlet hose.

	Usage	Hose diameter (")	Length (m)	Inlet thread ("bsp)	Outlet thread ("bsp)	Maximum pressure (bar)	Weight (kg)
SAMOA 504150	Air / water	1/2	15	1/2	1/2	20	24
SAMOA 504250	Oil	1/2	15	1/2	1/2	160	24
SAMOA 504350	Grease	1/4	15	1/4	1/4	400	26
SAMOA 504351	Grease	3/8	15	3/8	1/4	400	26
SAMOA 504450	High prssure hot water	3/8	15	3/8	1/4	170	26

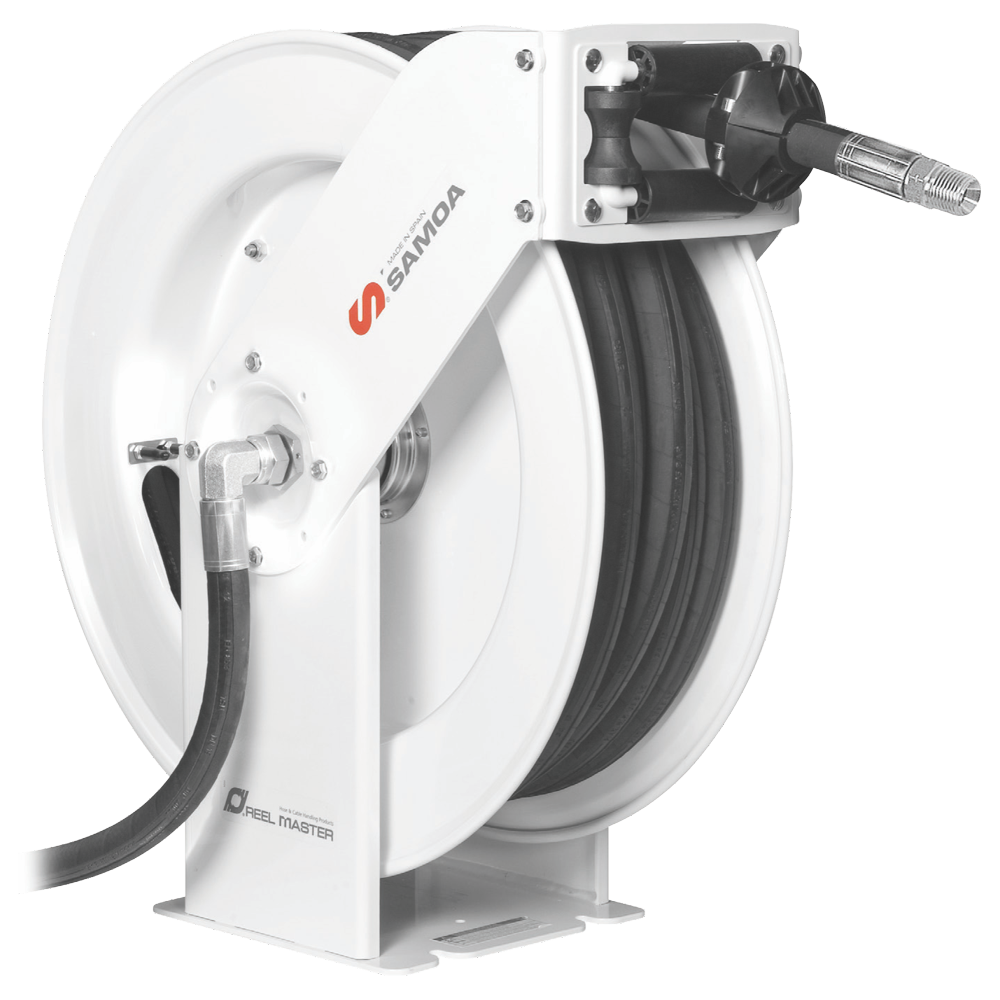

HEAVY DUTY HOSE REELS

LEARN MORE

Very tough construction able to stand regular use and abuse in intensive duty applications.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Hose guide arm can be placed in different positions to accommodate any method of mounting.
Narrow footprint allows accommodating more reels on the same surface.
Hose reels with hose include 0.8 m inlet hose.
Maximum hose capacity: 20mx1/2" hose or 15mx3/4" hose.

	Usage	Hose diameter (")	Length (m)	Inlet thread (bsp)	Outlet thread (bsp)	Maximum pressure (bar)	Weight (kg)
SAMOA 505232	Air, water, diesel and oil	1/2	20	3/4	1/2	160	36
SAMOA 505224	Air, water, diesel and oil	3/4	15	3/4	3/4	125	38
SAMOA 505332	Grease	1/2	20	1/2	1/2	400	39
