- Includes:
- 354120: 3:1 pressure ratio oil pump for 200 l drums.
- 362103: 3 m x 1/2" oil hose.
- 365535: Hose end meter with semi automatic non drip nozzle.
- 432000: 200 l drum trolley.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

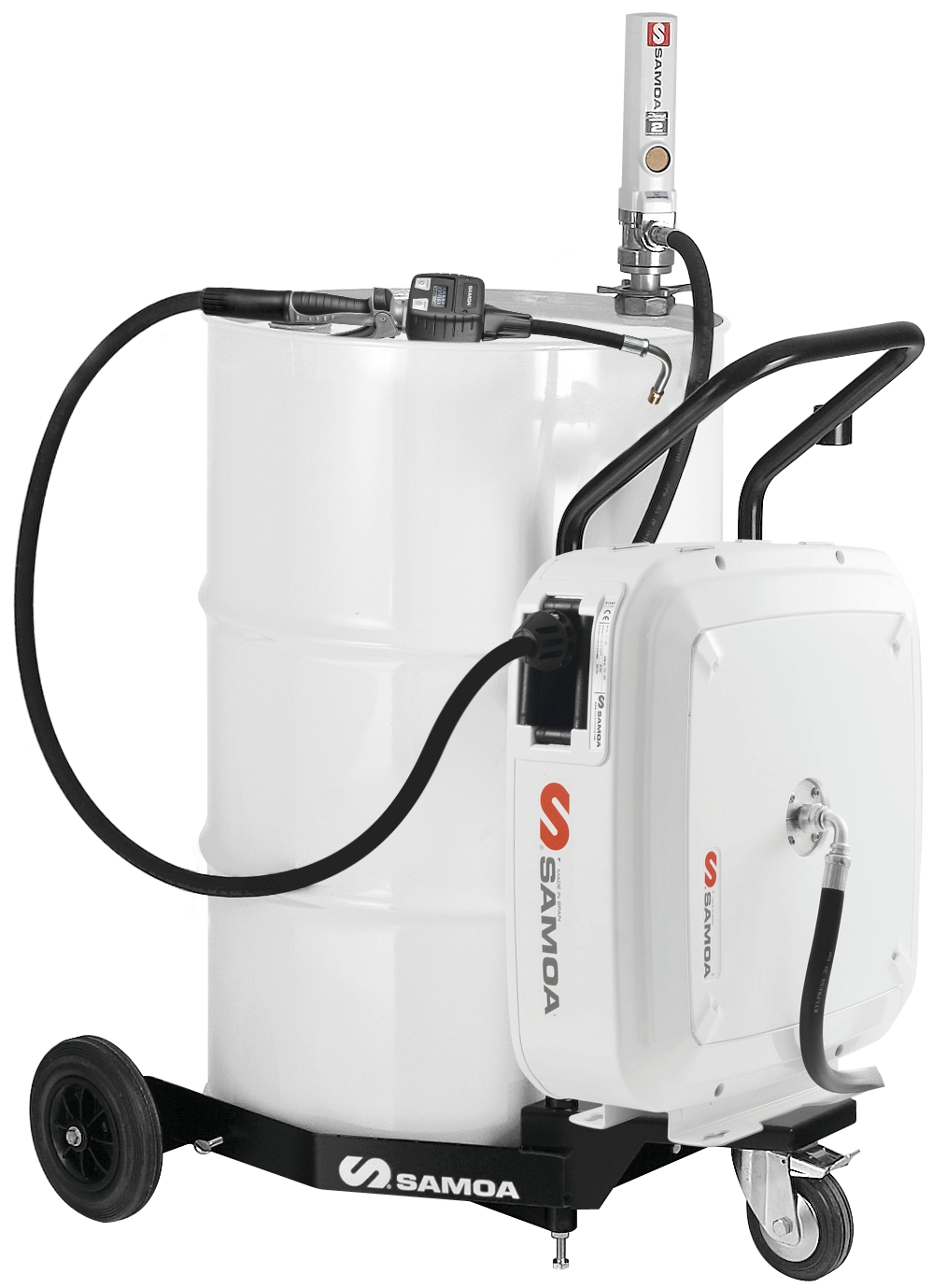

- Includes:
- 354120: 3:1 pressure ratio oil pump.
- 362101: Oil hose 1.5 m., ? int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
- 507202: Closed Type Hose Reel
Pressure cast aluminium arm and base for extra rigidity.
Hose reel guide with 6 rollers facilitates minimum hose wear and maximises hose assembly life.
1/2" x 10m.
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90� tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 432000: Trolley with two solid rubber wheels and one rubber swivelling wheel with brake.
- 360135: Hose reel bracket
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

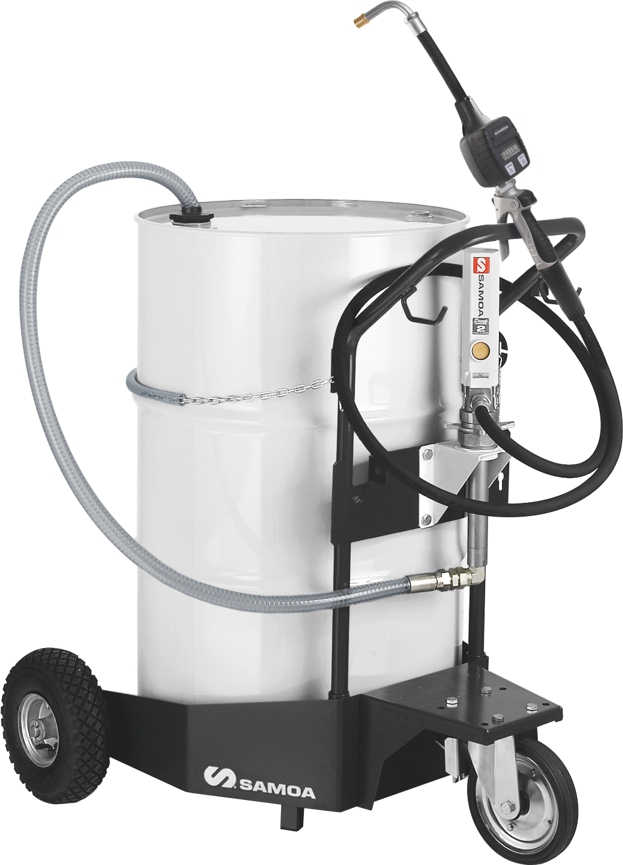

- Includes:
- 353120: 3:1 pressure ratio oil pump.
- 362103: Oil hose 3 m., ? int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90� tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 432814: Heavy duty trolley with two ? 260 mm tyred wheels and one solid rubber swivelling wheel with brake.
Includes an adjustable chain for securing the drum.
- 360102: Pump bracket.
- 367011: Suction hose for 200 l drums
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

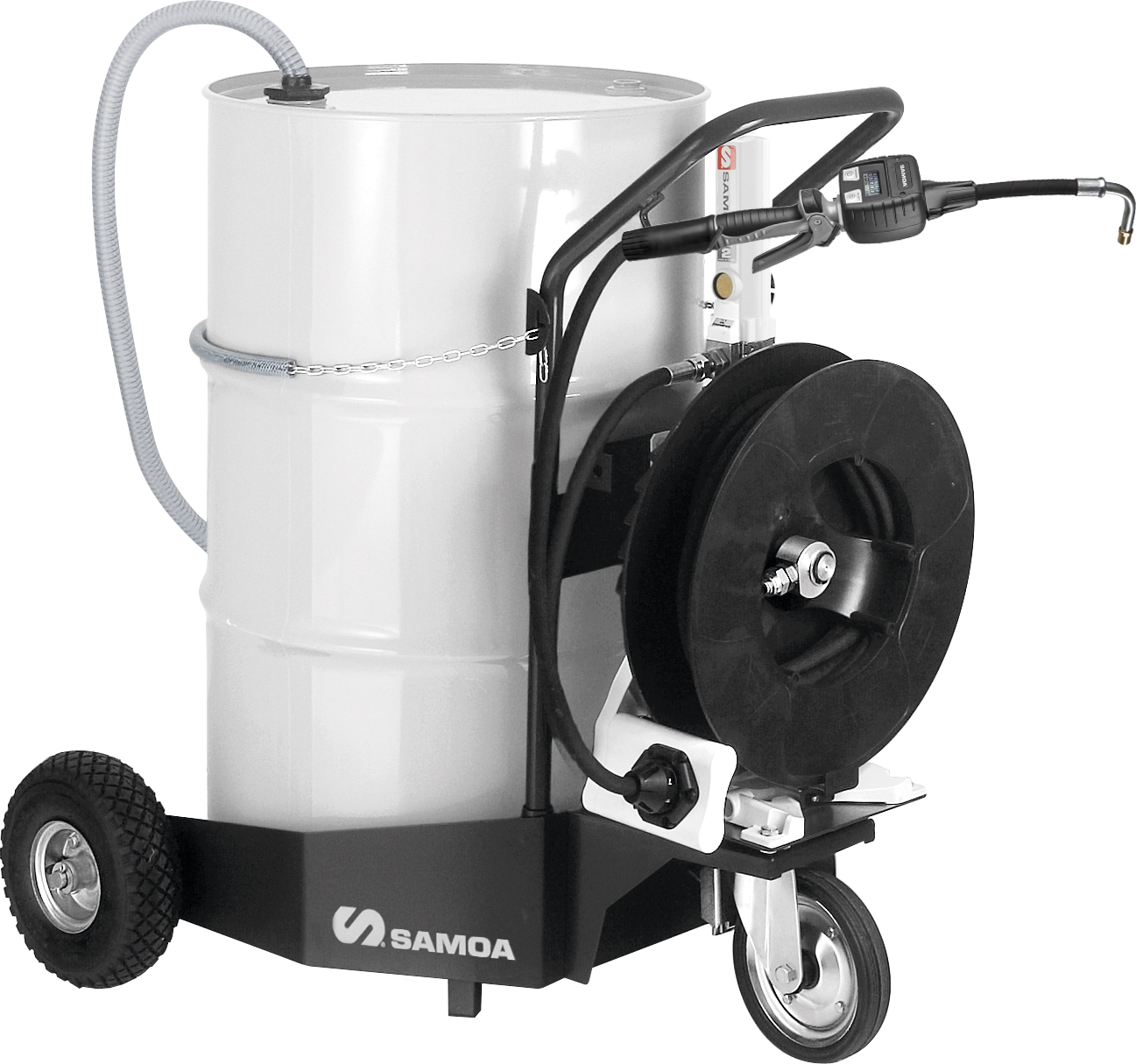

- Includes:
- 353120: 3:1 pressure ratio oil pump.
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90� tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 432814: Heavy duty trolley with two 260 mm tyred wheels and one solid rubber swivelling wheel with brake.
Includes an adjustable chain for securing the drum.
- 360102: Pump bracket.
- 367011: Suction assembly 1060 mm tube.
- 506202: Open Type Hose Reel
Pressure cast aluminium arm and base for extra rigidity.
Hose reel guide with 6 rollers facilitates minimum hose wear and maximises hose assembly life.
1/2" x 10m.
- 360113: Hose reel bracket to mount hose reel to trolley.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

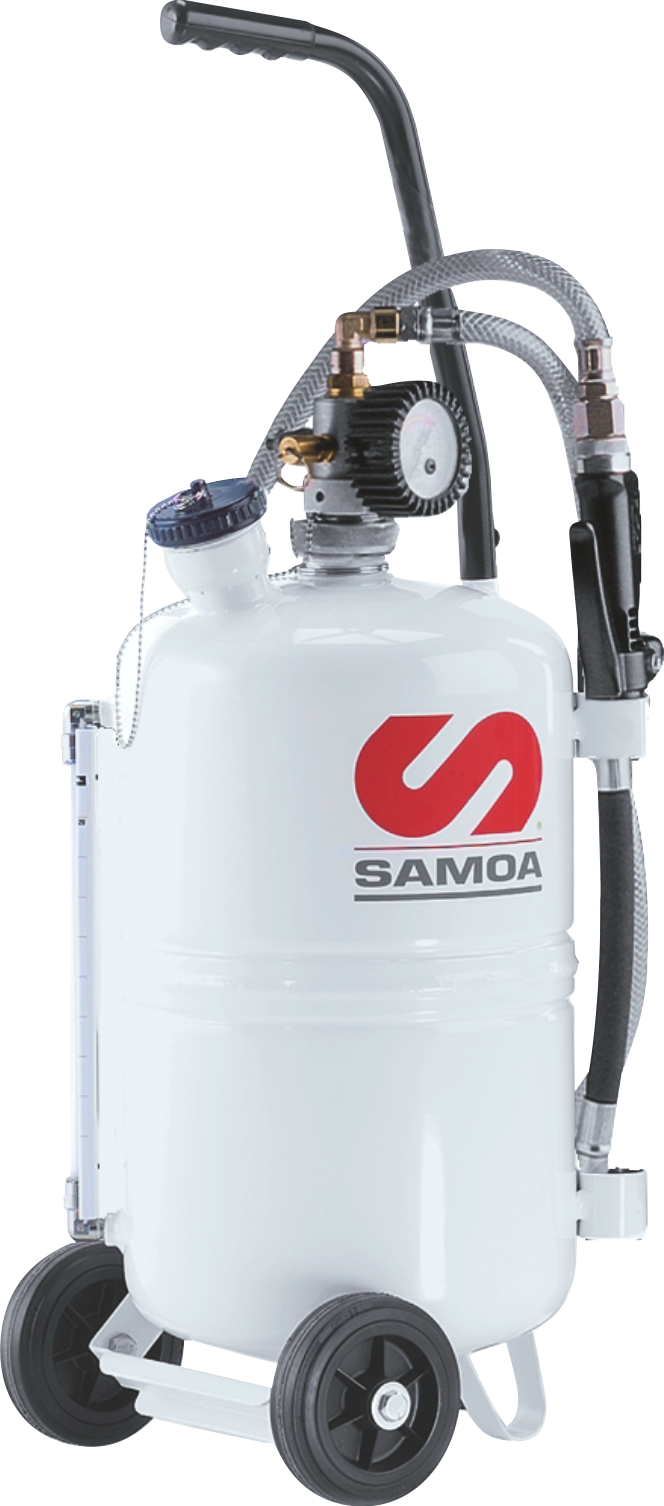

- Mobile unit for dispense viscous lubricants.
- Includes a 25 liters container that must be pressurized using a tire inflator at maximum 7 bar (100 psi).
- Includes safety valve and 1.5 m delivery hose with oil gun.
- Receiver has a side level gauge and can be used with any kind of lubricating oil.

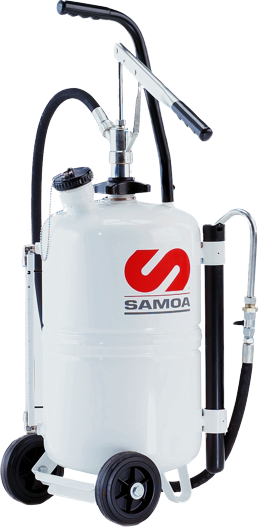

- Includes a 25 liters capacity tank, a hand pump and a 1,5 m delivery hose with angled spout.
- Receiver has a side level gauge and can be used with any kind of lubricating oil.

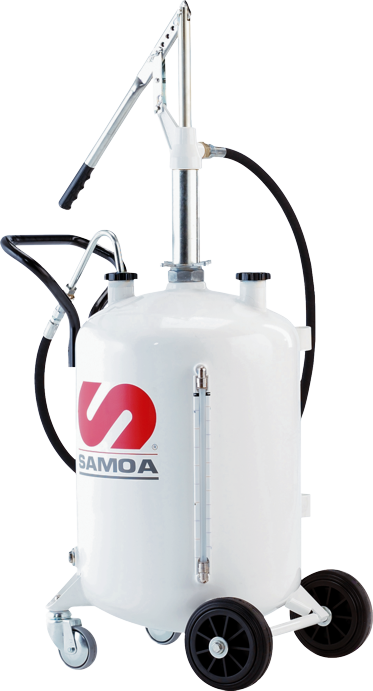

- Includes a 70 liters capacity tank, a hand pump and a 1,5 m delivery hose with angled spout.

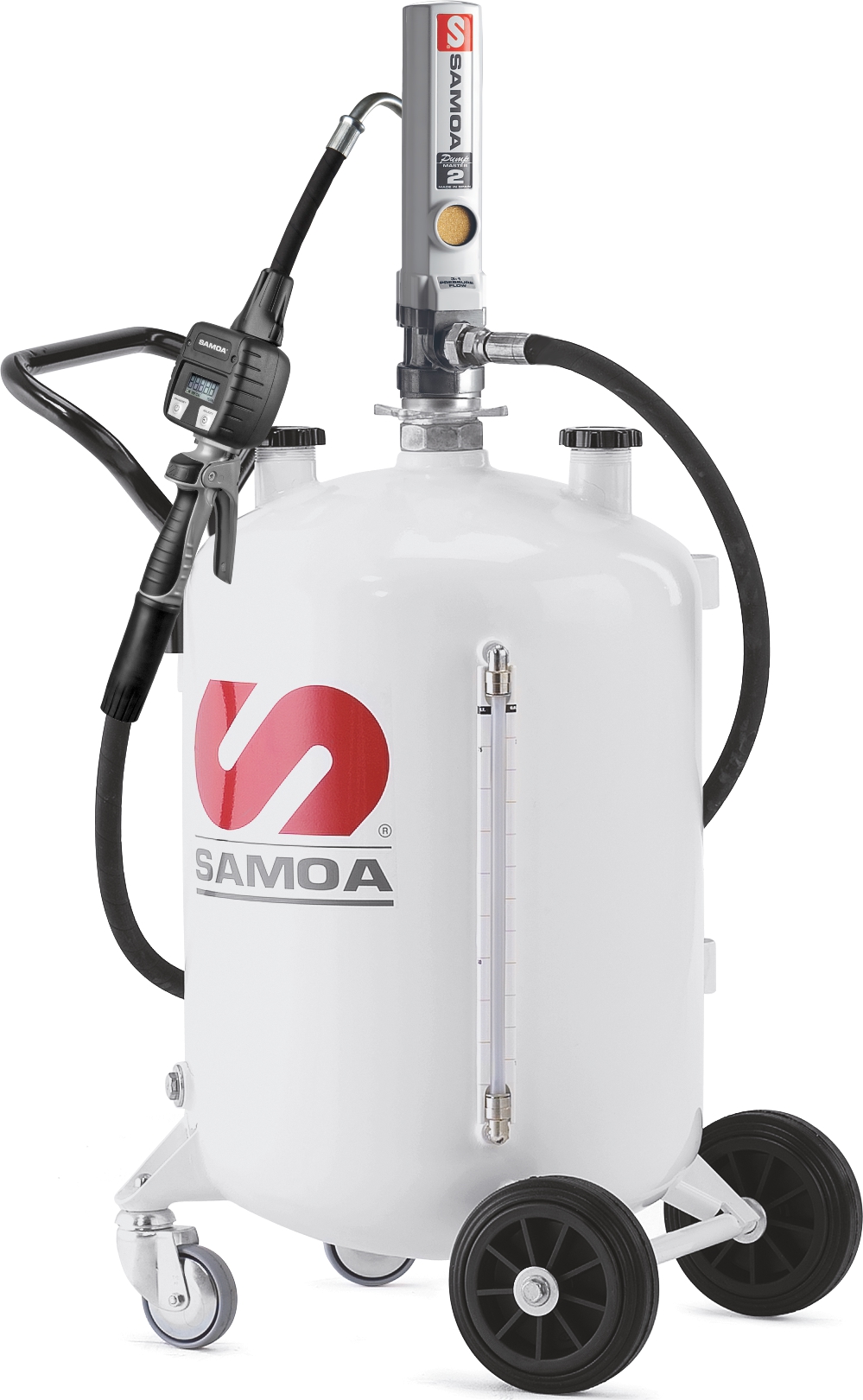

- Self contained unit with a 70 l (17 gallons) container with level gauge.
- Includes an air operated 3:1 pressure ratio pump for dispensing all types of lubricants, 3 m delivery hose and hose end meter with semi automatic non drip nozzle.
