Includes:
354120: 3:1 pressure ratio oil pump for 200 l drums.
362103: 3 m x 1/2" oil hose.
365535: Hose end meter with semi automatic non drip nozzle.
432000: 200 l drum trolley.
Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.
Includes:
354120: 3:1 pressure ratio oil pump.
362101: Oil hose 1.5 m., ? int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
507202: Closed Type Hose Reel
Pressure cast aluminium arm and base for extra rigidity.
Hose reel guide with 6 rollers facilitates minimum hose wear and maximises hose assembly life.
1/2" x 10m.
365535: Electronic-metered oil control gun
Outlet: Flexible with 90� tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
432000: Trolley with two solid rubber wheels and one rubber swivelling wheel with brake.
360135: Hose reel bracket
Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

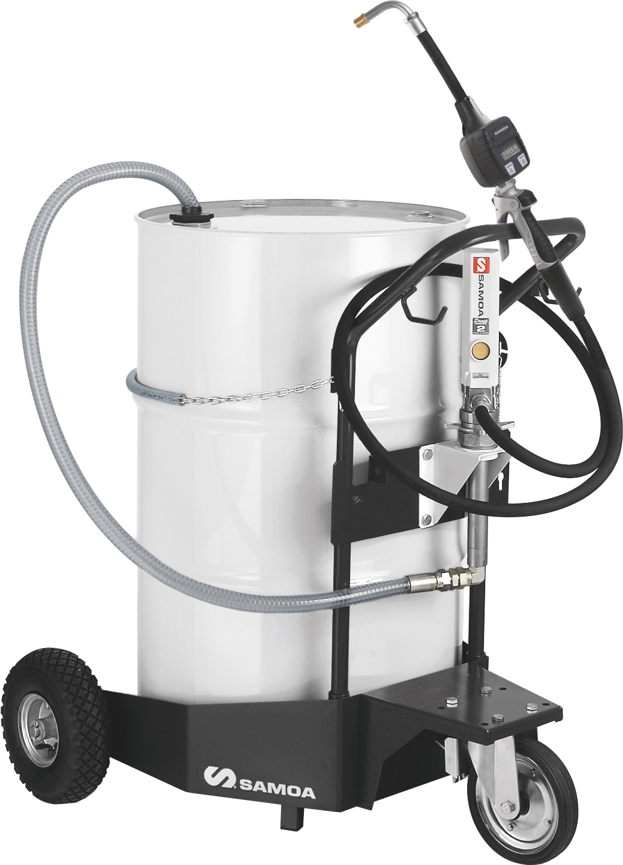

Includes:
353120: 3:1 pressure ratio oil pump.
365535: Electronic-metered oil control gun
Outlet: Flexible with 90� tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
432814: Heavy duty trolley with two 260 mm tyred wheels and one solid rubber swivelling wheel with brake.
Includes an adjustable chain for securing the drum.
360102: Pump bracket.
367011: Suction assembly 1060 mm tube.
506202: Open Type Hose Reel
Pressure cast aluminium arm and base for extra rigidity.
Hose reel guide with 6 rollers facilitates minimum hose wear and maximises hose assembly life.
1/2" x 10m.
360113: Hose reel bracket to mount hose reel to trolley.
Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.
Mobile unit for dispense viscous lubricants.
Includes a 25 liters container that must be pressurized using a tire inflator at maximum 7 bar (100 psi).
Includes safety valve and 1.5 m delivery hose with oil gun.
Receiver has a side level gauge and can be used with any kind of lubricating oil.
Includes a 25 liters capacity tank, a hand pump and a 1,5 m delivery hose with angled spout.
