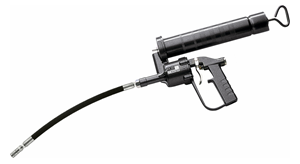

High pressure, 60:1 pressure ratio, air operated grease pumps.

They can be connected to a compressed air line or to an air brake circuit of a comercial vehicle.

Delivery: 1 cc each time the trigger is pressed.

Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).

Includes a 500 cc barrel with a spring driven grease follower.

Three way loading: 400 gr (14 oz) grease cartridges, bulk grease suction or with a grease filler pump.

Supplied with 400 mm double steel braid reinforced outlet hose and 4 jaw connector and filler nipple.

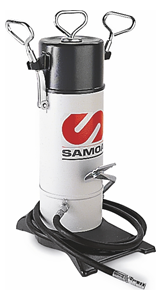

Pedal action heavy-duty grease pump.

Spring primed follower plate and cast iron pump mechanism ensures that the pump can be used even with extremely viscous grease.

Maximum pressure: 500 bar (7,150 psi).

Delivery per pedal stroke: 2 gr.

Steel leak proof reservoir, can hold up to 5 kg of grease.

Includes air bleeder valve and 2 m high pressure grease hose with a four jaw hydraulic connector with check valve.

For use with greasing units on hydraulic type nipples (DIN 71412).

Connector head and jaws manufactured in hardened steel.

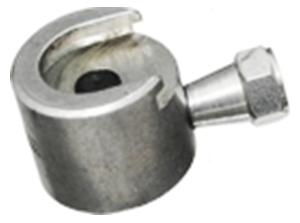

Button head connectors

For use with button head nipples.

Maximum pressure: 400 bar.

Recommended with hand equipment at maximum pressure 150 bar.

For ? 22 mm nipples.

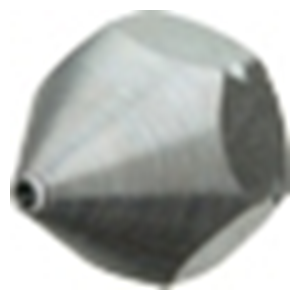

For concave type nipples DIN 3405.

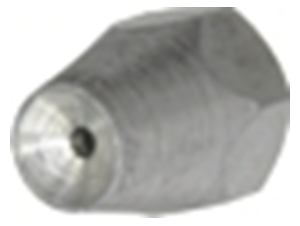

For Zerk grease nipples DIN 3402

Length: 16.60mm
